Drivers

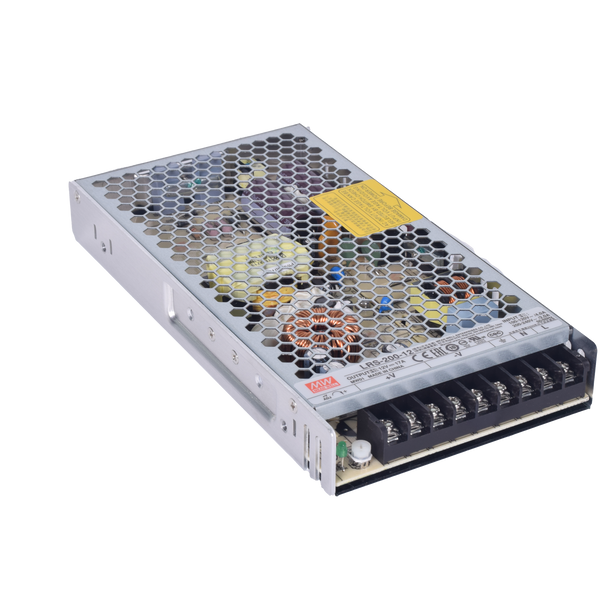

LRS-200-12
Description:
AC input range selectable by switch
Protections: Short circuit / Overload / Over voltage / Over temperature
High efficiency, long life and high reliability
| Output | |
| Rated Current: | 17A |
| DC Voltage Range: | 12V |
| Rated Power: | 204W |
| Voltage Tolerance: | +1.5% |
| Input | |
| Voltage Range: | 90~132VAC / 180~264VAC by switch 240~370VDC (switch on 230VAC) |
| Efficiency(Typ): | 87.5% |
| Dimension: | L215mm x W115mm x H30mm |
Message us for product availability.
